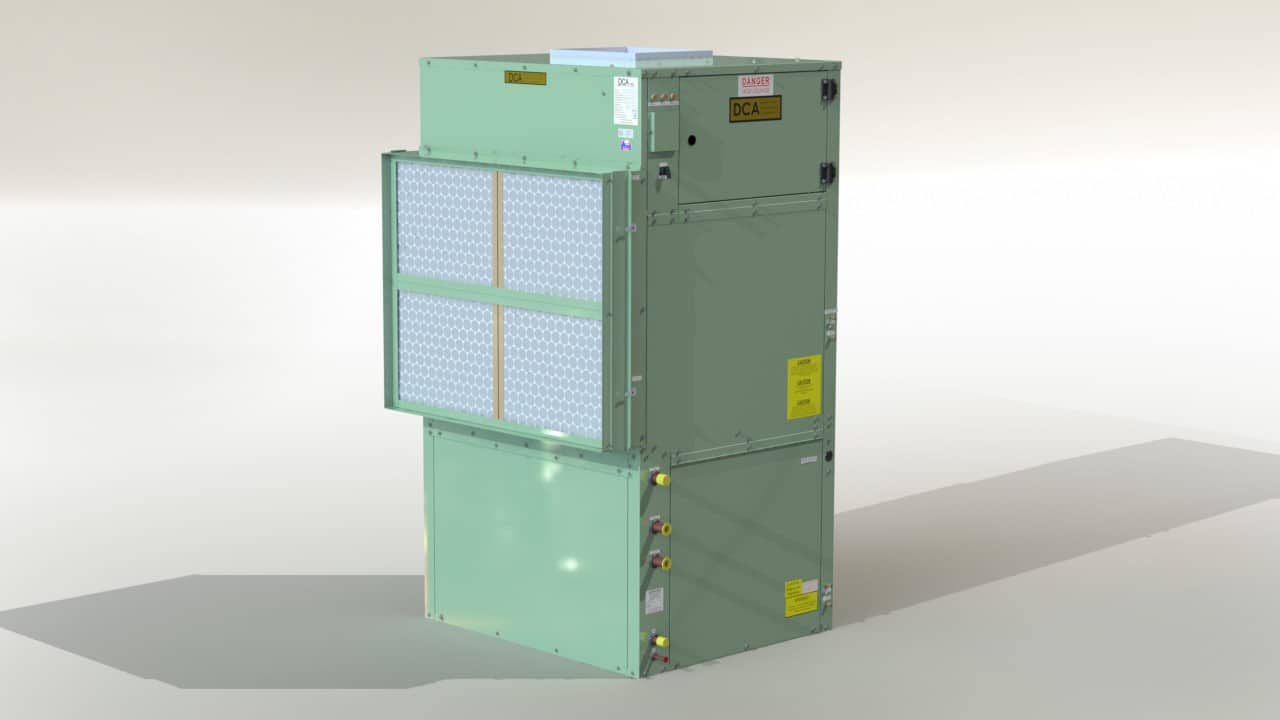

Water Heating Assist Dehumidifier
Item # DCA2500YVWH — Model # DCA2500YVWH, Water Heating Assist Dehumidifier
Pool water heating assist dehumidifiers are well suited to projects that feature large pool surface areas such as are typical in commercial applications, and are located in warm climates where the operation of the dehumidifier would spend much of its time operating in remote condenser mode providing room cooling. Typically these applications must include a primary water heating source as well.
If you cannot find the product you need, please let us know what your requirements are by contacting us.
Available Model Configurations
DCA2500YVWH: Air Cooled with Pool Water Heating Assist
DCA2500YVWH-CT: Water Cooled with Pool Water Heating Assist
Standard Features
- Listed to UL 60335-2-40
- 3 Year Parts Warranty
- Single Refrigeration Circuit
- Single Scroll Compressor
- Powder Coated, Galvannealed Steel Cabinet
- Low Ambient Head Pressure Control
- Remote Condenser Ready
- Rifle Tube Refrigeration Coils
- TEFC High Efficiency Blower Motor
- Stainless Steel Condensate Drain Pan
- Standard Microprocessor Control System
- ElectroFin Coated Coils
- Water Cooled Condenser for Pool Water Heating
Optional Features
- Right Side Return Air
- Horizontal Discharge (Not Field Convertible)
- Extended Surface Filters 2" & 4"
- Outdoor Make Up Air Flanged Opening ( Damper & Filter by Others)
- External Static Upgrade
- Motorized Evaporator Bypass Damper
- Remote Ready Delete
- Defrost Timer Package
- Control Options
- Space Heating Options Available
- Other Options Available
CFM
2500
Compressor Type
Scroll
Drain Connection
1" Bar Drain
External Static Pressure
1.00" H2O
Filter (Quantity: 4)
16" x 20" x 1" Fiberglass
Hot Gas Outlet [O.D.] (up to 50')⁴
0.875 in
Liquid Inlet [O.D.] (up to 50')⁵
0.5 in
Moisture Removal @ 82°DB / 50% R.H.²
23.2 LB/HR
Moisture Removal @ 82°DB / 60% R.H.¹
29.9 LB/HR
Nominal Tonnage
5.1
Pressure Drop3
6.4 ft W.C.
Refrigerant
R-454B (Factory Charged 25 lbs.)
Sensible Cooling @ 82°DB / 50% R.H.³
37.1 MBH
Sensible Cooling @ 82°DB / 60% R.H.²
32.8 MBH
Water Flow
10.0 GPM
Water Inlet [O.D.]
1.125 in
Water Outlet [O.D.]
1.125 in
Weight
760 LB
Note
Ratings are subject to change without notice
Footnotes
1 380V-3Ph-50Hz Available Upon Request
2 Reheat Mode assuming 1050 BTU/lb
3 Cooling Mode with Remote Condenser at 95 °F
4 Water Flow data as used on 50% RH + Return Air 82 °F and Pool Water at 85 °F
5 Over 50 ft contact factory
6 Assuming 85 °F entering water temperature.
7 Water Flow data as used on 50% RH + Return Air 82 °F and Pool Water at 85 °F
8 Assuming 85 °F entering water temperature.
9 Water Flow data as used on 50% RH + Return Air 82 °F and Pool Water at 85 °F
10 Depends on a lot of factors, contact factory for details.
Compressor @ 208/230-1-60
62300 BTU
30.1 RLA
170 LRA
Blower Motor @ 208/230-1-60
2.0 hp
8.5 FLA
Unit FLA @ 208/230-1-60
40.0
Maximum Fuse Size @ 208/230-1-60
70
Minimum Circuit Ampacity @ 208/230-1-60
47.5
Operating Power @ 208/230-1-60
6.14 kW
Compressor @ 208/230-3-60
62700 BTU
21.2 RLA
156.5 LRA
Blower Motor @ 208/230-3-60
2.0 hp
6.6 FLA
Unit FLA @ 208/230-3-60
29.2
Maximum Fuse Size @ 208/230-3-60
45
Minimum Circuit Ampacity @ 208/230-3-60
34.5
Operating Power @ 208/230-3-60
6.55 kW
Compressor @ 460-3-60
62700 BTU
9.1 RLA
74.8 LRA
Blower Motor @ 460-3-60
2.0 hp
2.9 FLA
Unit FLA @ 460-3-60
12.7
Maximum Fuse Size @ 460-3-60
20
Minimum Circuit Ampacity @ 460-3-60
15.0
Operating Power @ 460-3-60
6.31 kW
Compressor @ 575-3-60
62700 BTU
7.7 RLA
47.8 LRA
Blower Motor @ 575-3-60
2.0 hp
2.3 FLA
Unit FLA @ 575-3-60
10.6
Maximum Fuse Size @ 575-3-60
17.5
Minimum Circuit Ampacity @ 575-3-60
12.5
Operating Power @ 575-3-60
6.30 kW
Pressure Drop
6.4 ft W.C.
Water Flow (G.P.M.)⁷
10.0
Water Heating Capacity @ 82°DB / 50% R.H.⁶
76.7 MBH
Water Heating Capacity @ 82°DB / 60% R.H.¹
79.6 MBH
Available Water Sources
City Water
Geothermal Loop
Processed Water
Water Tower
Pressure Drop
6.4 ft W.C.
Water Flow (G.P.M.)⁹
10.0
Water Temperature Range¹⁰
35°F to 85°F
Water Heating Capacity @ 82°DB / 50% R.H.⁸
76.7 MBH
Water Heating Capacity @ 82°DB / 60% R.H.¹
79.6 MBH
