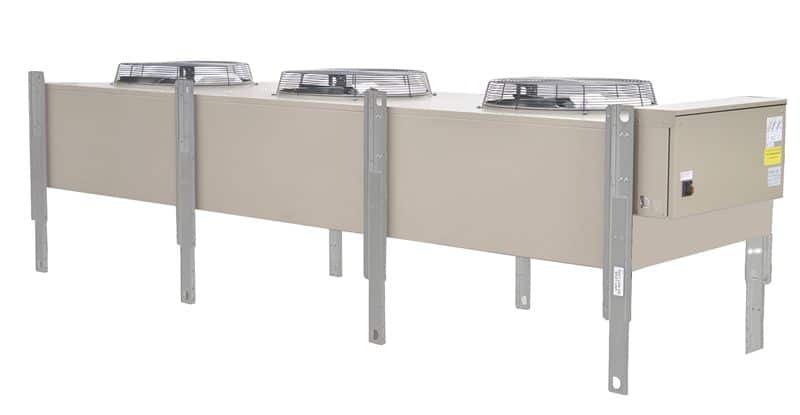

LNX Series Remote Condensers
Item # LNX-S03-A020-10 — Model # LNX-S03-A020-10, LNX Series Remote Condensers
All DCA dehumidifiers are manufactured to be remote condenser ready with all valves and electrical devices in place to be connected to an outdoor remote condenser. Air cooled remote condensers are used to reject excess heat to the outdoors if the heat generated by the dehumidifier cannot be used for room air heating or pool water heating. This condenser can supplement the room A/C system or be the sole source of room cooling. This condenser shall be large enough to reject all the recovered heat outdoors without simultaneously rejecting heat into the pool water or room air. This condenser shall be capable of operation down to -20ºF. Units shall be furnished as air-cooled condensers, arranged for vertical airflow. All units to be UL listed.
If you cannot find the product you need, please let us know what your requirements are by contacting us.
Standard Features
- Vertical Discharge
- Weather-tight Electrical Enclosure
- Computer Designed Condenser Coils
- Full-flooding System (-20 ºF Capability)
- Fully Assembled on Heavy Skids
Number of Connections
2 Sets
Number of Fans
3
Operating Weight
1040 lb
Recommended Dehumidifier Model at 95ºF
DCA14000Y/DCA14000YWH
Recommended Dehumidifier Model at 105ºF
DCA11000Y/DCA11000YWH
DCA9000Y/DCA9000YWH
Refrigeration Circuit(s)
Dual
Shipping Weight
1170 lb
Sound Level²
Standard
Note
Ratings are subject to change without notice
Footnotes
1 For line set sizes refer to dehumidifier design specifications.
2 For dB information please contact factory.
3 For line set sizes refer to dehumidifier design specifications.
4 Dimensions are subject to change without notice
Footnotes
1 For line set sizes refer to dehumidifier design specifications.
2 For dB information please contact factory.
3 For line set sizes refer to dehumidifier design specifications.
4 Dimensions are subject to change without notice
Footnotes
1 For line set sizes refer to dehumidifier design specifications.
2 For dB information please contact factory.
3 For line set sizes refer to dehumidifier design specifications.
4 Dimensions are subject to change without notice
Return O.D.¹
1 5/8 in
Refrigerant Connection Sizes - Supply O.D.³
1 5/8 in
Footnotes
1 For line set sizes refer to dehumidifier design specifications.
2 For dB information please contact factory.
3 For line set sizes refer to dehumidifier design specifications.
4 Dimensions are subject to change without notice
MCA/MFS: 208/230 - 3 Phase
20.0/25
MCA/MFS: 460 - 3 Phase
15.0/15
Footnotes
1 For line set sizes refer to dehumidifier design specifications.
2 For dB information please contact factory.
3 For line set sizes refer to dehumidifier design specifications.
4 Dimensions are subject to change without notice
