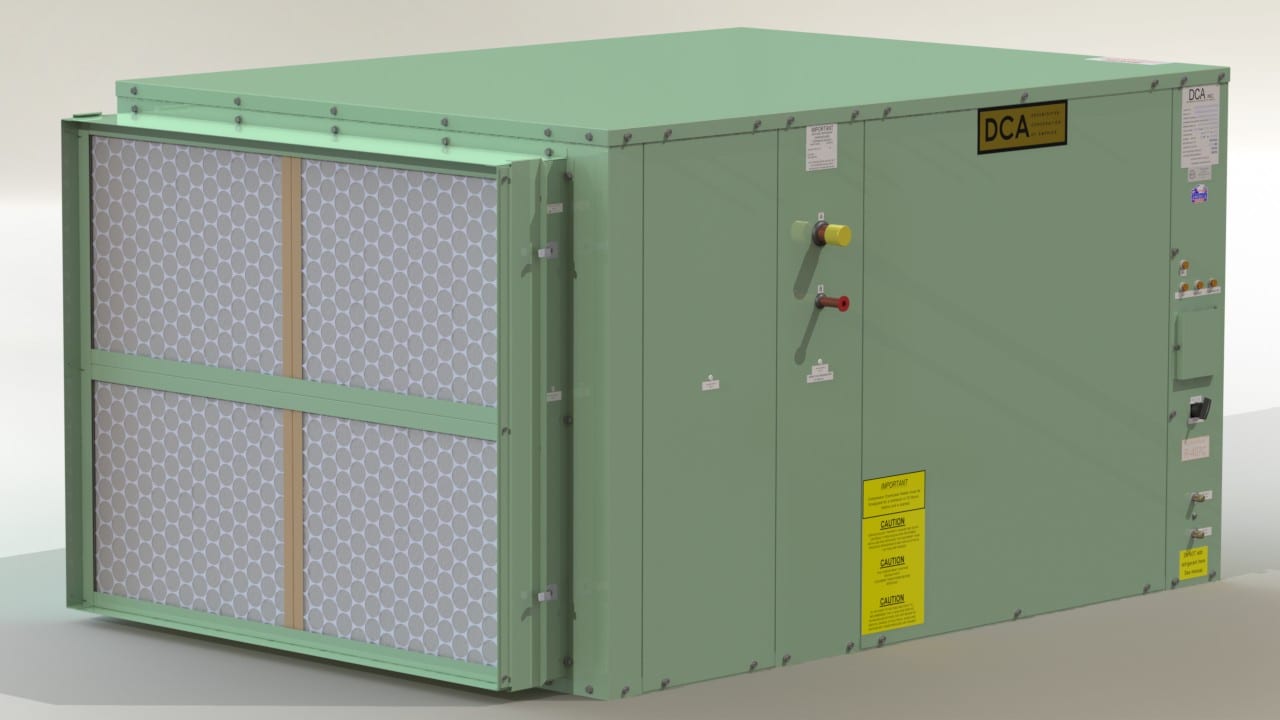

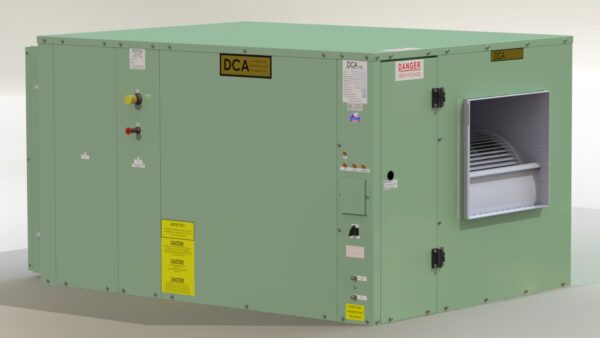

Model # DCA3600Y, Non Water Heating Assist Dehumidifier
Non Water Heating Assist Dehumidifier
Item # DCA3600Y — Model # DCA3600Y, Non Water Heating Assist Dehumidifier
Air Cooled, non water heating assist dehumidifiers are used when there is a primary pool and spa water heating source such as a hot water boiler in place.Typical applications would include, but be limited to, small pool surface area projects or in coldclimates or both.
If you cannot find the product you need, please let us know what your requirements are by contacting us.
Available Model Configurations
DCA3600Y: Air Cooled
DCA3600Y-CT: Water Cooled
Standard Features
- 3 Year Parts Warranty
- ElectroFin Coated Coils
- Low Ambient Head Pressure Control
- Listed to UL 60335-2-40
- Motorized Evaporator Bypass Damper
- Powder Coated, Galvannealed Steel Cabinet
- Remote Condenser Ready
- Rifle Tube Refrigeration Coils
- Single Refrigeration Circuit
- Single Scroll Compressor
- Stainless Steel Condensate Drain Pan
- Standard Microprocessor Control System (WH Models only)
- TEFC Blower Motor
Optional Features
- Control Options
- Defrost Timer Package
- Extended Surface Filters 2" & 4"
- External Static Upgrade
- Other Options Available
- Outdoor Installation Package
- Outdoor Make Up Air Assembly with Damper & Filter
- Remote Ready Delete
- Right Side Component Service Access
- Space Heating Options Available
- Top or Bottom Discharge (Not Field Convertible)
- Water Cooled Condenser for Water Heating or A/C Available
CFM
3600
Compressor Type
Scroll
Drain Connection
1" Bar Drain
External Static Pressure
0.5 " H2O
Filter (Quantity: 4)
16" x 20" x 1" Fiberglass
Hot Gas Outlet [O.D.] (up to 50')³
1.125 in
Liquid Inlet [O.D.] (up to 50')³
0.625 in
Moisture Removal @ 82°DB / 50% R.H.¹
34.1 LB/HR
Moisture Removal @ 82°DB / 60% R.H.¹
43.2 LB/HR
Nominal Tonnage
7.6
Refrigerant
R-454B (Factory Charged 45 lbs.)
Design Specifications - Sensible Cooling @ 82°DB / 50% R.H.²
51.3 MBH
Sensible Cooling @ 82°DB / 60% R.H.²
45.5 MBH
Weight
900 LB
Note
Ratings are subject to change without notice
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
Available Voltage/Phase
208/230-3-60
460-3-60
575-3-60
Compressor @ 208/230-3-60
91800 BTU
28.7 RLA
207.5 LRA
Blower Motor @ 208/230-3-60
2 hp
6.6 Unit FLA
Unit FLA @ 208/230-3-60
37.0
Maximum Fuse Size @ 208/230-3-60
60
Minimum Circuit Ampacity @ 208/230-3-60
44.2
Operating Power @ 208/230-3-60
8.66 kW
Compressor @ 460-3-60
91800 BTU
12.4 RLA
100.2 LRA
Blower Motor @ 460-3-60
2 hp
2.9 Unit FLA
Unit FLA @ 460-3-60
16.1
Maximum Fuse Size @ 460-3-60
30
Minimum Circuit Ampacity @ 460-3-60
19.2
Operating Power @ 460-3-60
8.42 kW
Compressor @ 575-3-60
91800 BTU
9.0 RLA
78 LRA
Blower Motor @ 575-3-60
2 hp
2.3 Unit FLA
Unit FLA @ 575-3-60
12.0
Maximum Fuse Size @ 575-3-60
20
Minimum Circuit Ampacity @ 575-3-60
14.3
Operating Power @ 575-3-60
8.41 kW
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
