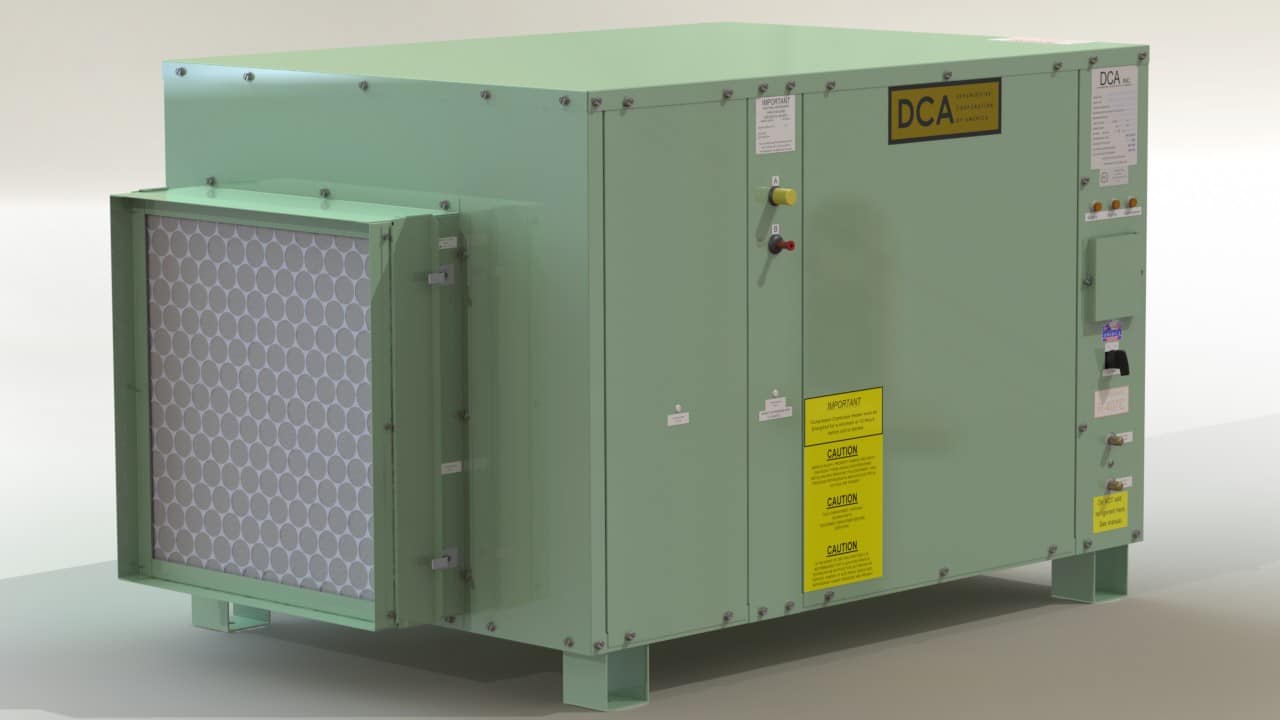

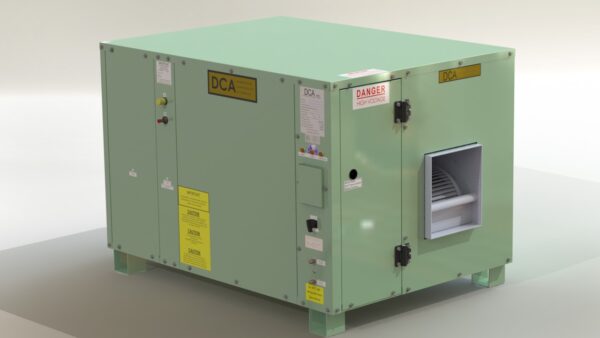

Non Water Heating Assist Dehumidifier
Item # DCA650Y — Model # DCA650Y, Non Water Heating Assist Dehumidifier
Air Cooled, non water heating assist dehumidifiers are used when there is a primary pool and spa water heating source such as a hot water boiler in place.Typical applications would include, but be limited to, small pool surface area projects or in coldclimates or both.
If you cannot find the product you need, please let us know what your requirements are by contacting us.
Available Model Configurations
DCA650Y: Air Cooled
DCA650Y-CT: Water Cooled
Standard Features
- ElectroFin Coated Coils
- Listed to UL 60335-2-40
- TEFC Blower Motor
- 3 Year Parts Warranty
- Low Ambient Head Pressure Control
- Powder Coated, Galvannealed Steel Cabinet
- Remote Condenser Ready
- Rifle Tube Refrigeration Coils
- Single Refrigeration Circuit
- Single Scroll Compressor
- Stainless Steel Condensate Drain Pan
- Standard Microprocessor Control System
Optional Features
- Extended Surface Filters 2" & 4"
- Outdoor Installation Package
- Outdoor Make Up Air Assembly with Damper & Filter
- Right Side Component Service Access
- Top or Bottom Discharge (Not Field Convertible)
- Control Options
- Defrost Timer Package
- External Static Upgrade
- Motorized Evaporator Bypass Damper
- Other Options Available
- Remote Ready Delete
- Space Heating Options Available
- Water Cooled Condenser for Water Heating or A/C Available
CFM
650
Compressor Type
Scroll
Drain Connection
1" Bar Drain
External Static Pressure
1.00" H2O
Filter (Quantity: 1)
20" x 20" x 1" Fiberglass
Hot Gas Outlet [O.D.] (up to 50')³
0.625 in
Liquid Inlet [O.D.] (up to 50')³
0.375 in
Moisture Removal @ 82°DB / 50% R.H.¹
5.9 LB/HR
Moisture Removal @ 82°DB / 60% R.H.¹
7.5 LB/HR
Nominal Tonnage
1.3
Refrigerant
R-454B (Factory Charged 10 lbs.)
Sensible Cooling @ 82°DB / 50% R.H.²
9.6 MBH
Sensible Cooling @ 82°DB / 60% R.H.²
8.5 MBH
Weight
365 LB
Note
Ratings are subject to change without notice
Footnotes
1 Reheat Mode assuming 1050 BTU/lb
2 Cooling Mode with Remote Condenser at 95 °F
3 Over 50 ft contact factory
Available Voltage/Phase
208-230-1-60
Compressor @ 208/230-1-60
16000 BTU
8.3 RLA
45.1 LRA
Blower Motor @ 208/230-1-60
0.5 hp
4.8 FLA
Unit FLA @ 208/230-1-60
14.5
Maximum Fuse Size @ 208/230-1-60
25
Minimum Circuit Ampacity @ 208/230-1-60
16.6
Operating Power @ 208/230-1-60
2.20 kW
